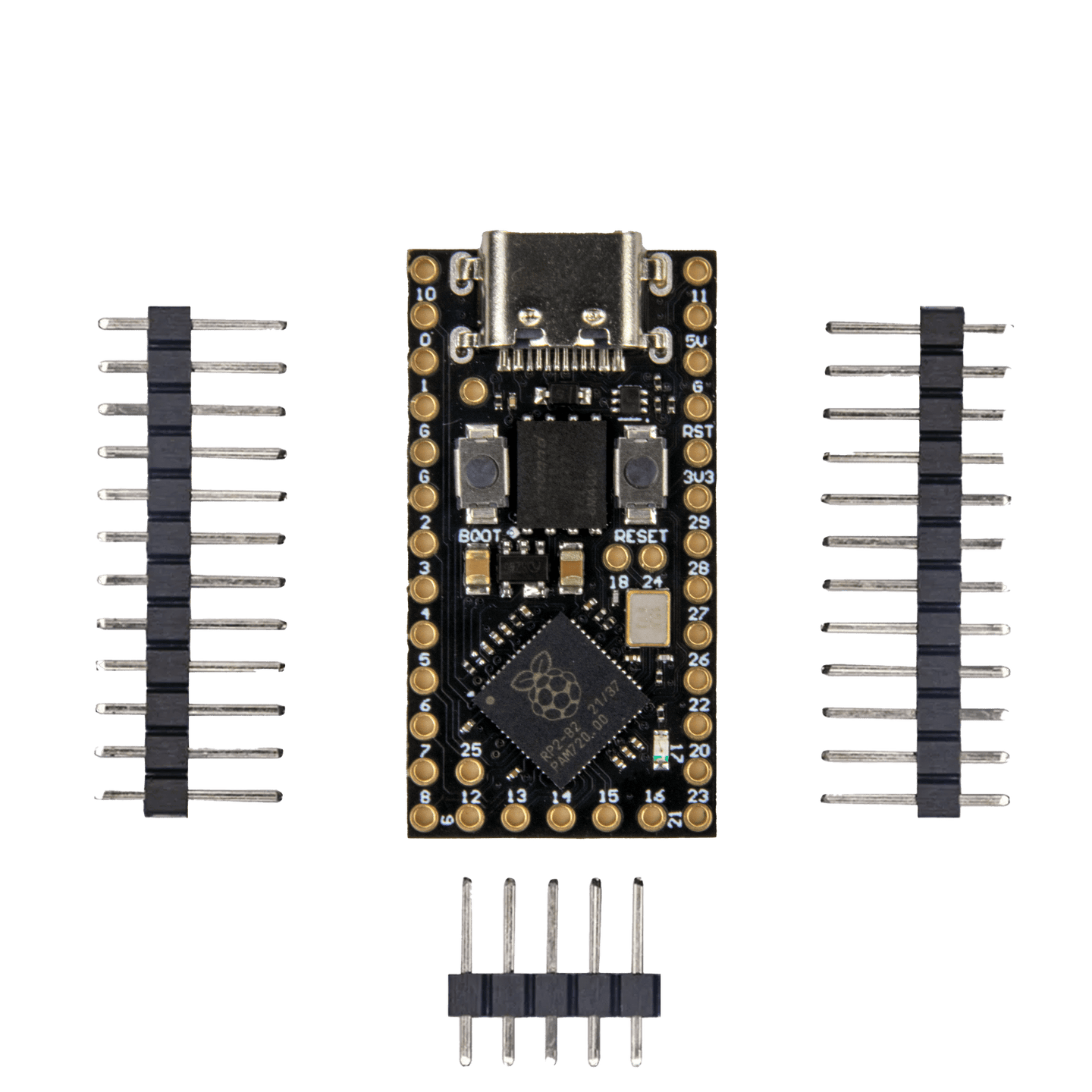

Pro Micro Keyboard Controller Pro Micro (5V) USB-C Pro Micro

Product Description

Introducing the Pro Micro – our budget-friendly controller now equipped with USB-C instead of Micro-USB! Whether you're incorporating it into a new keyboard or an Arduino project, the Pro Micro offers an economical and dependable solution.

Features
Top-mount USB Type-C
Total of 18 I/O Pins
ATMEGA32u4 MCU

What's included
Pro Micro (5V) Controller
2x 12-pin headers

Compatibility
Compatible with Pro Micro-based PCBs

Size
Length - 38mm
Width - 18.14mm
Height - 4.9mm

MCU Specifications (ATMEGA32U4)
Voltage - 5V
Clock speed - 16 MHz
Digital I/O pins - 18
RAM - 2.5 KB
Program memory - 32 KB
EEPROM - 1 KB
Bootloader - Caterina

Firmware support
QMK

Useful links
QMK Toolbox
QMK Configurator
VIA Firmware
VIA Configurator

Soldering required
